PATT PRODUCT INFORMATION

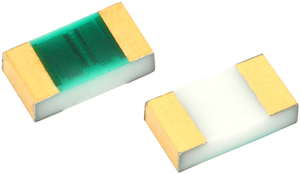

Precision Automotive High Temperature (155 °C at Full Rated Power) Thin Film Chip Resistor, AEC-Q200 Qualified
vsh-img-product-image

FEATURES

Resistance range: 1.0 Ω to 1 MΩ
AEC-Q200 qualified, table 7F
AEC-Q200 qualified, ESD rated class 1C (< 1 kΩ: 1 kV; > 1 kΩ: 2 kV)
