VO14642AT, VO14642AABTR PRODUCT INFORMATION

1 Form A Solid-State Relay

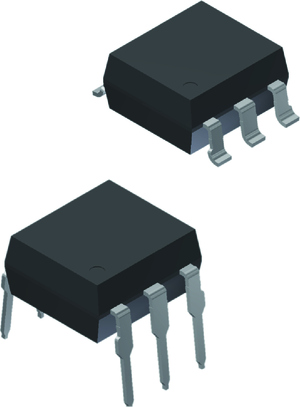

vsh-img-product-image

FEATURES

High speed SSR - ton/toff < 800 µs
Maximum RON 0.25 Ω
Isolation test voltage 5300 VRMS

APPLICATIONS

Instrumentation
Industrial controls
Security
