VOW3120 PRODUCT INFORMATION

Widebody 2.5 A IGBT and MOSFET Driver

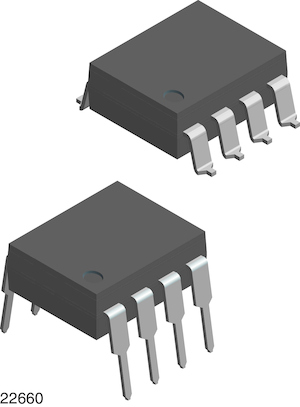

vsh-img-product-image

FEATURES

2.5 A minimum peak output current
10 mm minimum external creepage distance
50 kV/µs (typ.) common mode rejection

APPLICATIONS

Industrial welding equipment
Motor drives
Industrial inverters
