TSMP95000 PRODUCT INFORMATION

IR Sensor Module for Remote Control Systems

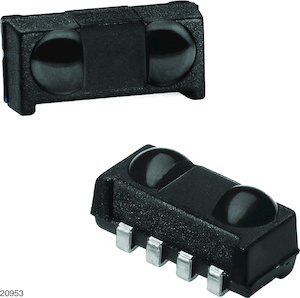

vsh-img-product-image

FEATURES

Photo detector and preamplifier in one package
AC coupled response from 30 kHz to 60 kHz, all data formats
Improved shielding against electrical field disturbance
