SFH691AT PRODUCT INFORMATION

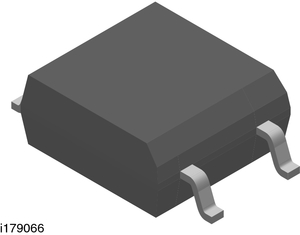

Optocoupler, Phototransistor Output, SOP-4, AC Input, Mini-Flat Package
vsh-img-product-image

FEATURES

The SFH691AT has a GaAs infrared emitting diode emitter, which is optically coupled to silicon planar phototransistor detector, and is incorporated in a 4 pin 100 mil lead pitch miniflat package. It features a high current transfer ratio, low...
The coupling devices are designed for signal transmission between two electrically separated circuits.
SOP (small outline package)

APPLICATIONS

High density mounting or space sensitive PCBs
PLCs
Telecommunication
