LH1510AAB, LH1510AABTR, LH1510AT PRODUCT INFORMATION

1 Form A Solid-State Relay (Normally Open)

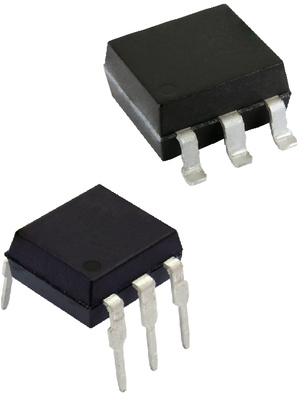

vsh-img-product-image

FEATURES

Isolation test voltage 5300 VRMS
Typical RON 12 Ω
Load voltage 200 V

APPLICATIONS

General telecom switching
Metering
Security equipment
