VS-HFA135NH40PbF PRODUCT INFORMATION

HEXFRED® Ultrafast Soft Recovery Diode, 275 A

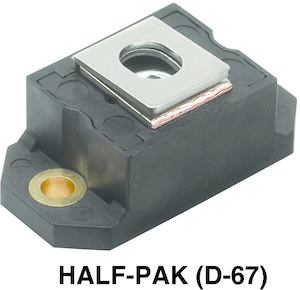

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low Qrr and trr
Designed and qualified for industrial level
UL approved file E222165

APPLICATIONS

HEXFRED® diodes are optimized to reduce losses and EMI/RFI in high frequency power conditioning systems. An extensive characterization of the recovery behavior for different values of current, temperature and dI/dt simplifies the calculations of losses in the operating conditions. The    softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for power converters, motors drives and other applications where switching losses are significant portion of the total losses.


Showing 1 to 3 of 3 entries
Document TypeTitleDescriptionShare
Application Notes
Mounting Instructions for HALF-PAK (D-67) Modules
share
Datasheet
HEXFRED® Ultrafast Soft Recovery Diode, 275 A
share
Package Drawings
D-67 HALF-PAK
share
