VS-301CNQ...PbF Series PRODUCT INFORMATION

High Performance Schottky Rectifier, 300 A

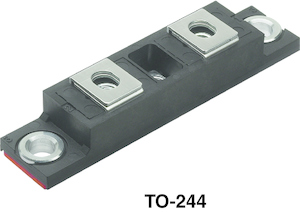

vsh-img-product-image

FEATURES

175 °C TJ operation
Center tap module
Low forward voltage drop

APPLICATIONS

The VS-301CNQ... center tap Schottky rectifier module series has been optimized for low reverse leakage at high temperature. The proprietary barrier technology allows for reliable operation up to 175 °C junction temperature. Typical applications are in high current switching power supplies, plating power supplies, UPS systems, converters, freewheeling diodes, welding, and reverse battery protection.
