VS-15ETU12HN3 PRODUCT INFORMATION

Ultrafast Rectifier, 15 A FRED Pt®

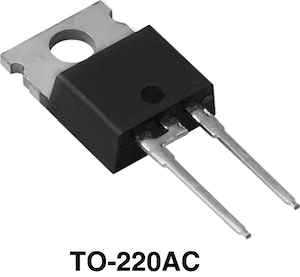

vsh-img-product-image

FEATURES

Ultrafast and soft recovery time
Optimized forward voltage drop
175 °C maximum operating junction temperature

APPLICATIONS

Ultrafast recovery rectifiers designed with optimized performance? of forward voltage drop, recovery time, and soft recovery?. Polyimide passivated, planar structure and the platinum doped? life time control guarantee, ruggedness, reliability characteristics?, and solid value proposition for efficiency and thermal? performance.?
These devices are intended for use in boost stage in the AC/DC? section of SMPS, high frequency output rectification of battery? charger, inverters of solar inverters, or as freewheeling diodes? in motor drive.
