VS-20MT120PFP PRODUCT INFORMATION

“Full Bridge” IGBT MTP (TrenchStop IGBT), 57 A

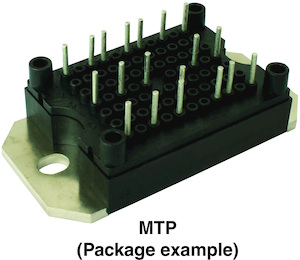

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Trench and Field Stop IGBT technology
Positive VCE(on) temperature coefficient
10 µs short circuit capability

APPLICATIONS

Optimized for welding, UPS and SMPS applications
Rugged with ultrafast performance
Outstanding ZVS and hard switching operation


Showing 1 to 3 of 3 entries
Document TypeTitleDescriptionShare
Application Notes
Mounting Instructions for MTP Modules
share
Datasheet
“Full Bridge” IGBT MTP (TrenchStop IGBT), 57 A
share
Package Drawings
MTP MOSFET/IGBT Full-Bridge
share
