VS-40MT120PHAPbF PRODUCT INFORMATION

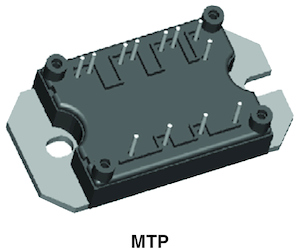

Half Bridge MTP Trench IGBT, 75 A
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Trench gate field stop technology
Positive VCE(on) temperature coefficient
5 µs short circuit capability

APPLICATIONS

Optimized for welding, UPS and SMPS applications
Rugged with ultrafast performance
Benchmark efficiency above 20 kHz


Showing 1 to 3 of 3 entries
Document TypeTitleDescriptionShare
Application Notes
Mounting Instructions for MTP Modules
share
Datasheet
Half Bridge MTP Trench IGBT, 75 A
share
Package Drawings
MTP
share
