F339X1 480VAC PRODUCT INFORMATION

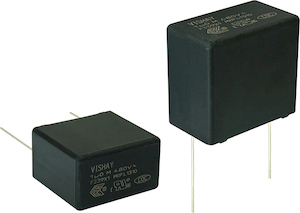

Interference Suppression Film Capacitor - Class X1 Radial MKP 480 VAC - 3-Phase Across the Line
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

AEC-Q200 qualified (rev. D, 85 °C maximum application temperature) for pitch 10 mm,     15 mm, and 22.5 mm
Internal series construction
Stable capacitance in severe ambient conditions 85 °C, 85 % RH, 400 VAC, 500 h for C > 100 nF

APPLICATIONS

3-phase and continuous across the lineX1 applications
Standard and continuous in series with the mains operation
See also application note: www.vishay.com/doc?28153
