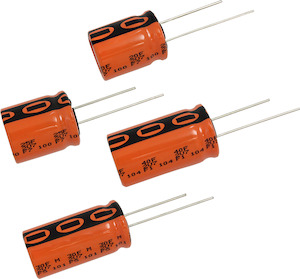

230 EDLC-HV ENYCAP™ PRODUCT INFORMATION

Electrical Double Layer Energy Storage Capacitors Up to 3 V Operating Voltage
vsh-img-product-image

FEATURES

Polarized energy storage capacitor with high capacity and energy density
Rated voltage: 3.0 V
Available in through-hole (radial) version

APPLICATIONS

Power backup
Burst power support
Storage device for energy harvesting
