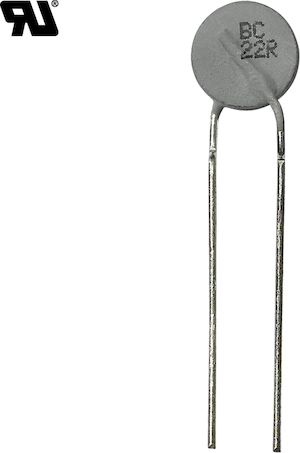

PTCCL - 145 V Series PRODUCT INFORMATION

145 V PTC Thermistors for Overload Protection
vsh-img-product-image

FEATURES

Wide range of trip and non-trip currents: From 47 mA up to 1 A for the non-trip current
Small ratio between trip and non-trip currents (It/Int = 1.5 at 25 °C)
High maximum inrush current (up to 13 A)

APPLICATIONS

Overload (current, voltage, temperature) protection in:
Telecommunications
Industrial electronics
