VSML3710 PRODUCT INFORMATION

High Power Infrared Emitting Diode, 940 nm, GaAlAs, MQW

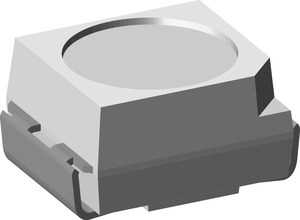

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Package type: surface mount
Package form: PLCC-2
Dimensions (L x W x H in mm): 3.5 x 2.8 x 1.75

APPLICATIONS

IR emitter in photointerrupters, sensors, and reflective sensors
IR emitter in low space applications
Household appliance
