BPW24R PRODUCT INFORMATION

Silicon PIN Photodiode, RoHS-Compliant
vsh-img-product-image

FEATURES

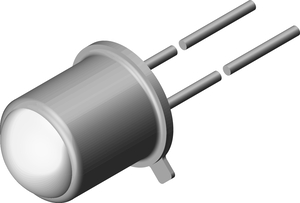

BPW24R is a high sensitive silicon planar photodiode in a standard TO-18 hermetically sealed metal case with a glass lens.
A precise alignment of the chip gives a good coincidence of mechanical and optical axes. The device features a low capacitance and high speed even at low supply voltages.
Package type: leaded

APPLICATIONS

High speed photo detector
