VLMS1300, VLMO1300, VLMY130., VLMG1300, VLMTG1300, VLMB13.. PRODUCT INFORMATION

Highbright 0603 ChipLED

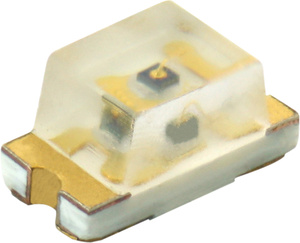

vsh-img-product-image

FEATURES

Super thin ChipLED with exceptional brightness 1.6 mm x 0.8 mm x 0.8 mm (L x W x H)
High reliability PCB based
Wavelength (465 to 475) nm (blue), typ. 525 nm (true green), typ. 571 nm (yellow green), (584.5 to 597) nm (yellow), typ. 605 nm (soft orange), typ. 631 nm (super red)

APPLICATIONS

Backlight keypads
Navigation systems
Cellular phone displays
