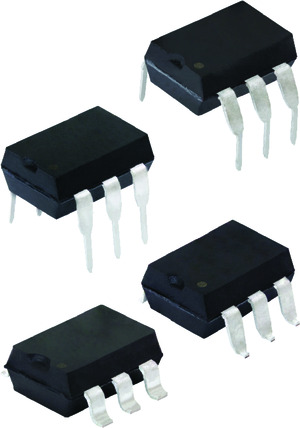

IL4116, IL4117, IL4118 PRODUCT INFORMATION

Optocoupler, Phototriac Output, Zero Crossing, Very Low Input Current
vsh-img-product-image

FEATURES

Low trigger current IFT = 0.7 mA (typ.)
ITRMS = 300 mA
High static dV/dt ≥ 10 000 V/µs

APPLICATIONS

Solid-state relay
Lighting controls
Temperature controls
