LH1505AB, LH1505AAC, LH1505AACTR PRODUCT INFORMATION

Dual 1 Form A Solid-State Relay (Normally Open)

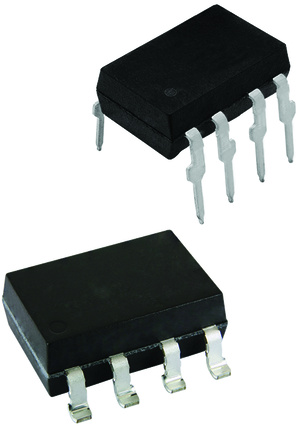

vsh-img-product-image

FEATURES

Isolation test voltage 5300 VRMS
Typical RON 12 Ω
Load voltage 250 V

APPLICATIONS

General telecom switching
Security equipment
Instrumentation
