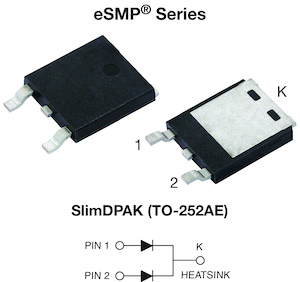

V40PW45C PRODUCT INFORMATION

High Current Density Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.33 V at IF = 5 A
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low profile - typical height of 1.3 mm
Trench MOS Schottky technology
Ideal for automated placement

APPLICATIONS

For use in low voltage high frequency DC/DC converters, freewheeling diodes, and polarity protection applications.


Showing 1 to 8 of 8 entries
Document TypeTitleDescriptionShare
Application Notes
SOD-57, SOD-64, DO-35, and DO-41 Trim And Form Process Recommendations
share
Datasheet
High Current Density Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.33 V at IF = 5 A
share
General Information
Soldering Process
share
Markings
Marking
share
Product Literature
Schottky Rectifiers
share
Product Literature
A Brief Introduction to TMBS® Diodes in eSMP® Series Packages
share
Product Literature
45 V to 150 V TMBS® Rectifiers in SlimDPAK (TO-252AE) Package Save Space, Improve Thermal Performance and Efficiency
share
Product Literature
TMBS® Rectifiers in SlimDPAK (TO-252AE) Package
share
