V60D100C PRODUCT INFORMATION

Dual High-Voltage TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.36 V at IF = 5 A

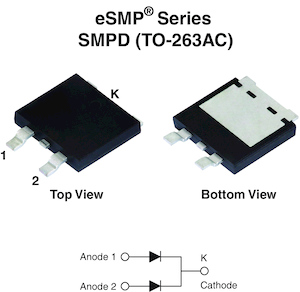

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Trench MOS Schottky technology
Very low profile - typical height of 1.7 mm
Ideal for automated placement

APPLICATIONS

For use in high frequency DC/DC converters, switching power supplies, freewheeling diodes, OR-ing diode, and reverse battery protection in commercial, industrial, and automotive application.


Showing 1 to 9 of 9 entries
Document TypeTitleDescriptionShare
Datasheet
Dual High-Voltage TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.36 V at IF = 5 A
share
General Information
Soldering Process
share
Markings
Marking
share
Product Literature
Schottky Rectifiers
share
Product Literature
Diodes for the Automotive Industry: Device Selector Guide by Application
share
Product Literature
Rectifiers: Featured Products
share
Product Literature
TMBS® Rectifiers in Low Profile SMPD Package With Low Forward Voltage Drop Cut Power Losses and Increase Efficiency
share
Product Literature
TMBS® Rectifiers in eSMP® Series Packages (Infograph)
share
Product Literature
TMBS® Rectifiers in SMPD (TO-263AC) Package
share
