SM5S10A thru SM5S36A PRODUCT INFORMATION

Surface Mount PAR® Transient Voltage Suppressors High Temperature Stability and High Reliability Conditions

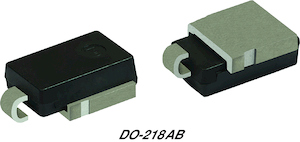

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Junction passivation optimized design passivated anisotropic rectifier technology
TJ = 175 °C capability suitable for high reliability and automotive requirement
Available in unidirectional polarity only

APPLICATIONS

Use in sensitive electronics protection against voltage transients induced by inductive load switching and lighting, especially for automotive load dump protection application.
