MBR(F,B)15H35CT thru MBR(F,B)15H60CT PRODUCT INFORMATION

Dual Common Cathode Schottky Rectifier High Barrier Technology for Improved High Temperature Performance

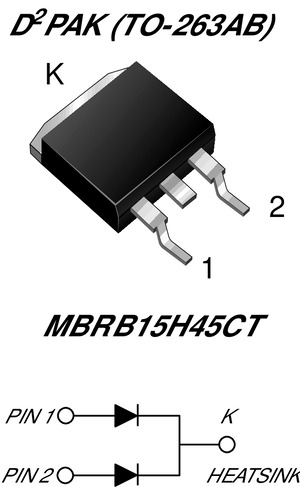

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Guardring for overvoltage protection
Low power loss, high efficiency
Low forward voltage drop

APPLICATIONS

For use in low voltage, high frequency rectifier of switching mode power supplies, freewheeling diodes, DC/DC converters and polarity protection application.
