V12P10 PRODUCT INFORMATION

High Current Density Surface Mount TMBS® (Trench MOS Barrier Schottky) Rectifier Ultra Low VF = 0.43 V at IF = 5 A

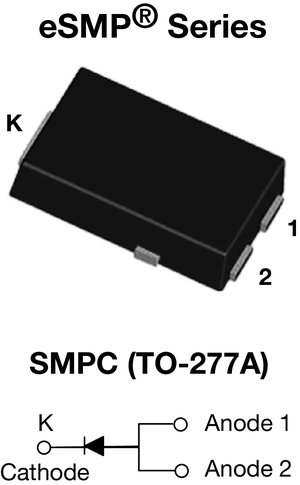

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low profile - typical height of 1.1 mm
Ideal for automatic placement
Trench MOS Schottky technology

APPLICATIONS

For use in low voltage high frequency inverters, freewheeling, DC/DC converters and polarity protection applications.
