SiHD1K4N60E PRODUCT INFORMATION

E Series Power MOSFET

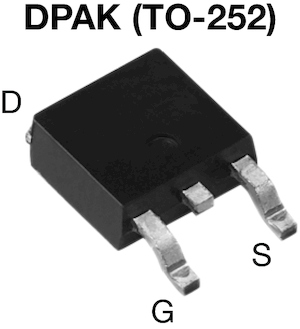

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

4th generation E series technology
Low figure-of-merit (FOM) Ron x Qg
Low effective capacitance (Co(er))

APPLICATIONS

Server and telecom power supplies
Switch mode power supplies (SMPS)
Power factor correction power supplies (PFC)
