VS-60EPU02-N3, VS-60APU02-N3 PRODUCT INFORMATION

Ultrafast Soft Recovery Diode, 60 A FRED Pt®

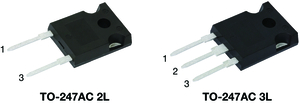

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Ultrafast recovery time
Low forward voltage drop
175 °C operating junction temperature

APPLICATIONS

These diodes are optimizedto reduce losses and EMI/RFI in high frequency power conditioning systems. The softness of the recovery eliminates the need for a snubber in most applications. These devices are ideally suited for HF welding, power converters and other applications where switching losses are not significant portion of the total losses.


Showing 1 to 8 of 8 entries
Document TypeTitleDescriptionShare
Constructions
Cross Sections of SUPERRECTIFIER® Construction
share
Datasheet
Ultrafast Soft Recovery Diode, 60 A FRED Pt®
share
Markings
TO-247AC, TO-247AD 2L
share
Markings
Marking
share
Packaging Information
Package Drawings
share
Product Literature
The Optimized Solution for Charging Applications
share
Product Literature
Ultrafast Rectifiers
share
Product Literature
Diodes for the Automotive Industry: Application Overviews and Block Diagrams
share
