VS-8CVH02HM3 PRODUCT INFORMATION

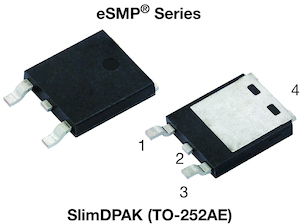

Hyperfast Rectifier, 2 x 4 A FRED Pt®
Automotive Grade Logovsh-img-product-image

FEATURES

Hyperfast recovery time
175 °C max. operating junction temperature
Low forward voltage drop reduced Qrr and soft recovery

APPLICATIONS

State of the art hyper fast recovery rectifiers designed with optimized performance of forward voltage drop, hyperfast recovery time, and soft recovery.
The planar structure and the platinum doped life time control guarantee the best overall performance,ruggedness and reliability characteristics.
These devices are intended for use in PFC boost stage in the AC/DC section of SMPS inverters or as freewheeling diodes. Their extremely optimized stored charge and low recovery current minimize the switching losses and reduce overdissipation in the switching element and snubbers.
