VS-6DKH02-M3 PRODUCT INFORMATION

Hyperfast Rectifier, 2 x 3 A FRED Pt®

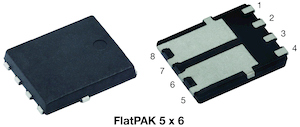

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Hyper fast recovery time, reduced Qrr, and soft recovery
175 °C maximum operating junction temperature
Low forward voltage drop

APPLICATIONS

State of the art hyper fast recovery rectifiers specifically designed with optimized performance of forward voltage drop and hyper fast recovery time.
The planar structure and the platinum doped life time control guarantee the best overall performance, ruggedness and reliability characteristics.
These devices are intended for use in snubber, boost, lighting, as high frequency rectifiers and freewheeling diodes.


Showing 1 to 11 of 11 entries
Document TypeTitleDescriptionShare
Application Notes
SOD-57, SOD-64, DO-35, and DO-41 Trim And Form Process Recommendations
share
Constructions
Cross Sections of SUPERRECTIFIER® Construction
share
Datasheet
Hyperfast Rectifier, 2 x 3 A FRED Pt®
share
Markings
Marking
share
Markings
FlatPAK 5 x 6
share
Package Drawings
FlatPAK 5 x 6 (Dual)
share
Product Literature
Ultrafast Rectifiers
share
Product Literature
The Optimized Solution for Charging Applications
share
Product Literature
Diodes for the Automotive Industry: Application Overviews and Block Diagrams
share
Product Literature
FRED Pt® Ultrafast Rectifiers in FlatPAK 5x6
share
Product Literature
FRED Pt® Ultrafast Rectifiers in FlatPAK 5 x 6 Package Increase Power Density and Performance Efficiency
share
