VS-50TPS12LHM3 PRODUCT INFORMATION

Thyristor High Voltage, Phase Control SCR, 50 A

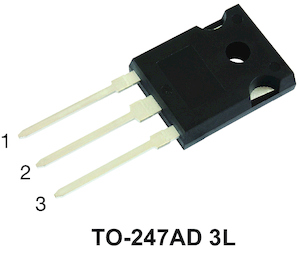

vsh-img-product-image

FEATURES

AEC-Q101 qualified, meets JESD 201 class 1A whisker test
Flexible solution for reliable AC power rectification
Easy control peak current at charger power up to reduce passive / electromechanical components

APPLICATIONS

On-board and off-board EV / HEV battery chargers
Renewable energy inverters
