VS-3EYH01HM3, VS-3EYH02HM3 PRODUCT INFORMATION

Hyperfast Rectifier, 3 A FRED Pt®

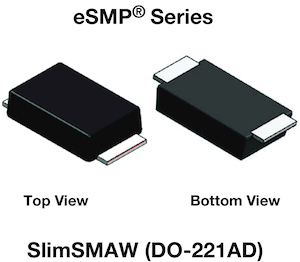

vsh-img-product-image

FEATURES

Low profile package
Ideal for automated placement
Low forward voltage drop, low power losses

APPLICATIONS

For use in high frequency, freewheeling, DC/DC converters, PFC, and in snubber industrial, and automotive applications.
