ESH2PB, ESH2PC, ESH2PD PRODUCT INFORMATION

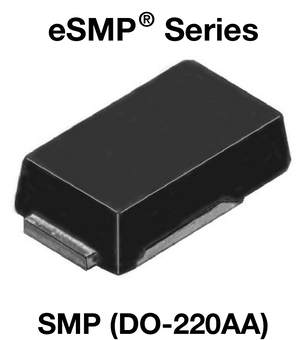

High Current Density Surface-Mount Ultrafast Rectifiers
vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low profile - typical height of 1.0 mm
Ideal for automated placement
Glass passivated pellet chip junction

APPLICATIONS

For use in secondary rectification and freewheeling for ultrafast switching speeds of AC/DC and DC/DC converters in high temperature for both consumer and automotive applications.
