AR3PK, AR3PM PRODUCT INFORMATION

Fast Switching Avalanche Surface-Mount Rectifiers

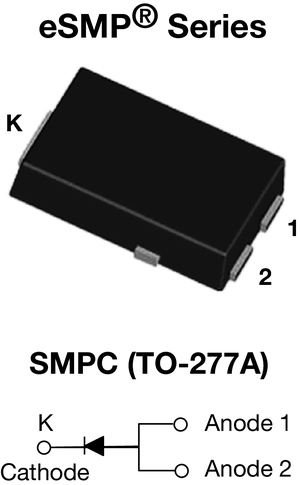

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low profile - typical height of 1.1 mm
Ideal for automated placement
Glass passivated pellet chip junction

APPLICATIONS

For use in lighting, fast switching rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.


Showing 1 to 6 of 6 entries
Document TypeTitleDescriptionShare
Application Notes
SOD-57, SOD-64, DO-35, and DO-41 Trim And Form Process Recommendations
share
Constructions
Cross Sections of SUPERRECTIFIER® Construction
share
Datasheet
Fast Switching Avalanche Surface-Mount Rectifiers
share
General Information
Soldering Process
share
Markings
Marking
share
Product Literature
Avalanche Rectifiers - Sinterglass and Plastic
share
