VS-HFA70FA120 PRODUCT INFORMATION

HEXFRED® Ultrafast Soft Recovery Diode, 70 A

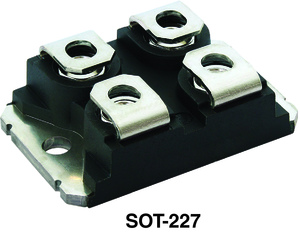

vsh-img-product-image

FEATURES

Fast recovery time characteristic
Electrically isolated base plate
Large creepage distance between terminal

APPLICATIONS

The dual diode series configuration (VS-HFA70FA120) is used for output rectification or freewheeling/clamping operation and high voltage application.
The semiconductor in the SOT-227 package is isolated from the copper base plate, allowing for common heatsinks and compact assemblies to be built.
These modules are intended for general applications such as HV power supplies, electronic welders, motor control and inverters.
