VCNL36826S PRODUCT INFORMATION

Proximity Sensor With Interrupt, VCSEL, and I²C Interface

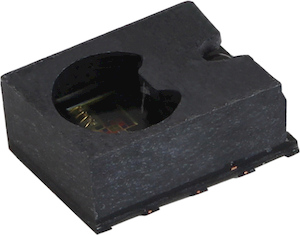

vsh-img-product-image

FEATURES

Package type: surface-mount
Dimensions (L x W x H in mm): 2.55 x 2.05 x 1.0
Integrated modules: vertical cavity surface emitting laser (VCSEL), proximity sensor (PS), and signal conditioning IC

APPLICATIONS

Handheld device
Consumer device
Industrial application
