MSE1PB, MSE1PD, MSE1PG, MSE1PJ PRODUCT INFORMATION

Surface-Mount ESD Capability Rectifier

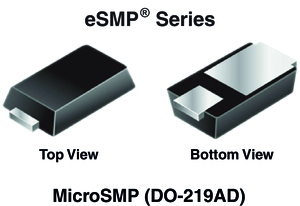

vsh-img-product-image

pdf-icon-small Datasheet

FEATURES

Very low profile - typical height of 0.65 mm
Ideal for automated placement
Oxide planar chip junction

APPLICATIONS

General purpose, polarity protection, and rail-to-rail protection in both consumer and automotive applications.
