AC-Wallbox
CHARGING INFRASTRUCTURE
AC-Wallbox
Engineer's Toolbox
Share Icon
PDF Icon
MOSFETs
4th Gen Superjunction MOSFETs with 600 V and Fast Body Diode
  • Fast body diodes for improved switching performance in resonant topologies
  • Avalanche energy rated (UIS)
  • Reduced FOM and low output capacitance for low switching losses
SiHG039N60EF
SiHG039N60EF
More Info
FILM CAPACITORS
THB Grade IIIB Interference Suppression Film Capacitors, X2, X1 and Y2
  • High robustness under high humidity: THB 85 °C / 85 % RH / 1000 h at rated voltage
  • Full compliance and certified by external labs with Grade IIIB capacitors
  • High capacitance values available
F340
F340
More Info
CERAMIC CAPACITORS
AC Line Rated Ceramic Disc Capacitors Class X1, 760 VAC, Class Y1, 500 VAC
  • First SMD capacitor with Full IEC 60384-14 4th compliance
  • 500 V DC Rating
  • All SMD process possible
SMD Y1
SMD Y1
More Info
RESISTORS
High Pulse Load Carbon Film MELF Resistors, Pulse Handling Up to 3 kW, ESD Up to 16 kV
  • Ultimate surge handling up to 16 kV ESD,
    17 kW 1.2 / 50, VDE safety approval
  • AEC-Q200 qualified, sulfur resistant,
    GREEN product
CMB 0207
CMB 0207
More Info
RESISTORS
High Voltage, Thin Film Flat Chip Resistors, Up to 1 kV Operating Voltage
  • High operating voltage Umax. up to 1000 V
  • Low voltage coefficient < 1 ppm/V
  • Long term stable and excellent moisture stability
TNPV e3
TNPV e3
More Info
FILM CAPACITORS
THB AC and Pulse Metallized Polypropylene Film Capacitors, High Temperature
  • High temperature operation up to 125 °C
  • THB 60 °C 93 % RH for 56 days at rated voltage
  • Resonant capacitor, customization on request
MKP385e
MKP385e
More Info
INDUCTORS
High Current Through-Hole Inductors, Edge-Wound Series
  • High-current inductor constructed with flat ribbon wire for minimal losses
  • The powdered iron core material provides stable saturation to 180 °C
  • High isolation voltage, customization possible
IHDM-1008BC-30
IHDM-1008BC-30
More Info
INDUCTORS
SMD common Mode Choke
  • Full SMD process possible
  • Low profile of 11 mm. 1500 VDC isolation
  • Wide range of inductance and current ratings
IHCM
IHCM
More Info
high performance differential output isolation amplifier
  • Isolation test voltage: 5000 VRMS
  • Fixed gain: 1 input signal range from 0.02 V to 2 V
VIA2000SD
VIA2000SD
More Info
DIODES AND RECTIFIERS
1200 V Gen 3 Power SiC Merged PIN Schottky Diode, 5 A
  • SiC-Schottky Diodes ideal as Bootstrap Diode in high power converters
  • >5.2mm creepage distance
  • Thin wafer technlogy for reduced forward voltage
VS-3C05ET12S2L-M3
VS-3C05ET12S2L-M3
More Info
OPTOELECTRONICS

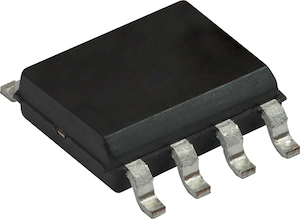

High Speed Optocoupler, 25 MBd, SOIC-8 Package
  • CMOS logic digital input and output
  • Digital bus system isolation
  • Storage Temperature up to 150°C, Operation up to 110°C
VOIH72A
VOIH72A
More Info
FILM CAPACITORS
Interference Suppression Film Capacitor - Class X2 Radial MKT 310 VAC - High Stability Grade
  • For continuous operation, higher stability grade than per IEC 60384-14
  • Up to 110°C . Series construction for high robustness
  •
F1772 X2
F1772 X2
More Info
