Missile
GUIDED DEFENSE SYSTEMS
Missile
Engineer's Toolbox
Share Icon
PDF Icon
OPTOELECTRONICS
4 Quadrat Silicon PIN Diode
  • 4 Individual PIN Diodes in one package
  • Lated package technology for reduced noise
  • Daylight filter
K857PE
K857PE
More Info
RESISTORS
Power Metal Strip® Resistors, Very High Power (to 3 W), Low Value (Down to 0.0005 Ω), Surface-Mount
  • Extremely low resistance values from 0.0005 Ω to 0.1 Ω, tolerances of 1 % and 0.5 %
  • Very high power rating to 3 W in WSLP0603 to WSLP2512 size packages
  • All-welded construction offers high pulse capacity
  • Low temperature coefficient of resistance
WSLP
WSLP
More Info
THERMISTORS
TFPT Thermistors, Nickel Thin Film Linear Temperature Sensors
  • Temperature compensation RTD, excellent overall stability
  • cULus recognized
  • Wide operating temperature range: -55 °C to +150 °C
TFPT
TFPT
More Info
TANTALUM CAPACITORS

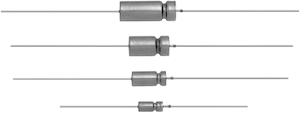

Wet Tantalum Capacitors Silver Case TANTALEX™ Capacitors
Hermetically-Sealed
  • Terminations: axial, standard tin / lead, 100% tin (RoHS-compliant) available
138D
138D
More Info
CAPACITORS

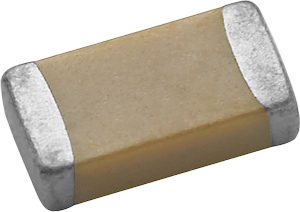

Surface Mount Multilayer Ceramic Chip Capacitors MIL Qualified, Type MIL-123
  • High reliability tested per MIL-PRF-123
  • Space-level reliability
MIL-PRF-123
MIL-PRF-123
More Info
THERMISTORS

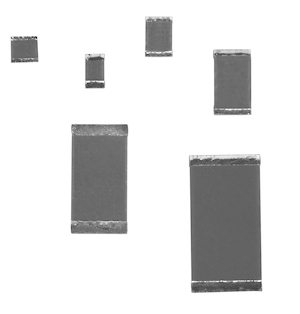

High Stability, High Temperature (230 °C) Thin Film Wraparound Chip Resistors
  • Operating temperature up to 215 °C, low TCR down to 15 ppm/°C: -55 °C to +215 °C
  • Sulfur resistant, from 10R up to 7.5M, tight tolerance down to 0.05 %
  • Cases sizes: 0402 to 2010
PHT (Sizes 0402 to 2010)
PHT (Sizes 0402 to 2010)
More Info
MAGNETICS

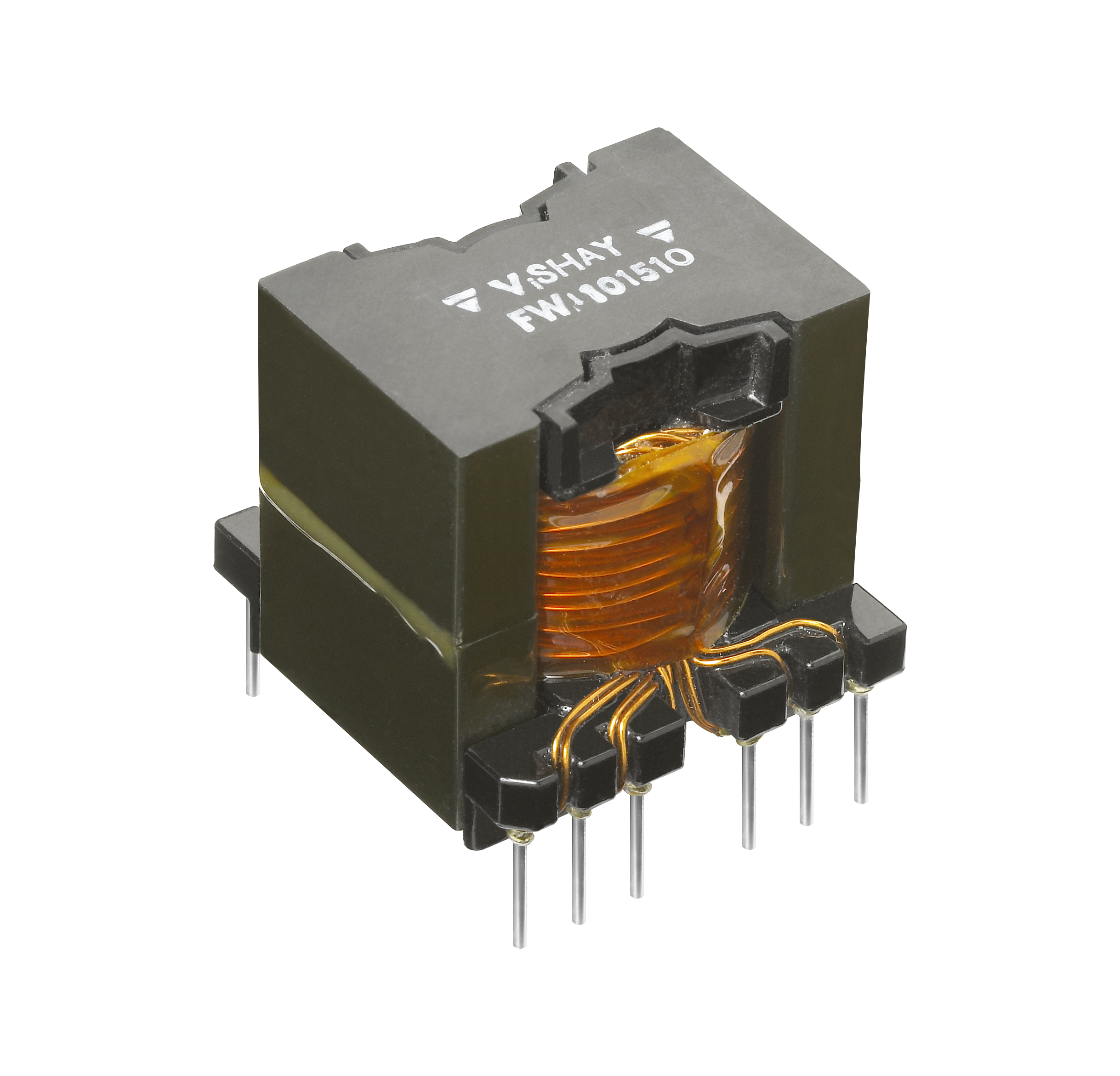

Custom Magnetic Devices for a Wide Range of High Reliability Applications
  • Component design optimization for size, performance, reliability, and cost
  • Broad design expertise for all magnetic applications
Custom Magnetics
Custom Magnetics
More Info
RESISTORS

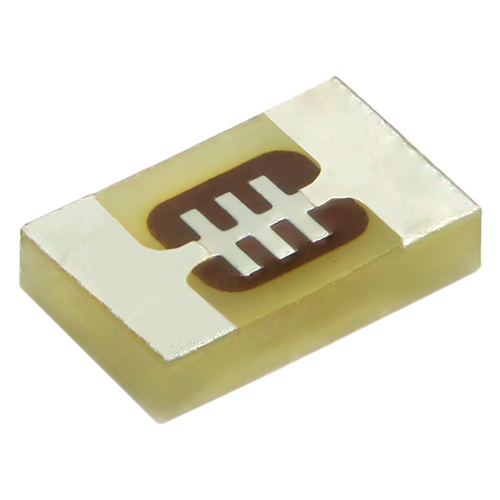

Massive Electro-Pyrotechnic Initiator Chip Resistors
  • Low firing energy down to 1.5 mJ, fast firing time down to 250 μs
  • Standard 0805 SMD case, alternative to bridge wire technology
MEPIC
MEPIC
More Info
POSITION: NON-CONTACTING

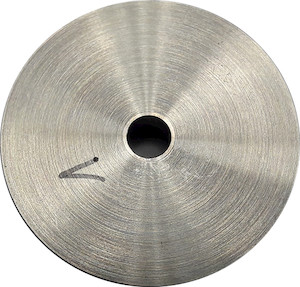

Magnetic Encoders, High Accuracy, High Resolution, Diameter 33 mm
  • Accuracy 13 bits, resolution 16.5 bits
  • Output SSI RS422 by connector, operation temperature range -40 °C to +105 °C
  • Outer diameter 33 mm, inner diameter 4.77 mm, thickness < 6 mm
RAMK033
RAMK033
More Info
TANTALUM CAPACITORS
Wet Tantalum Capacitors, High Energy, Ultra High Capacitance, -55 °C to +125 °C Operation
  • High energy, very high capacitance design, all tantalum, hermetically sealed
  • Utilizes Vishay proven SuperTan® technology, 2 terminations opt.: SMD and radial
EP1
EP1
More Info
RESISTORS

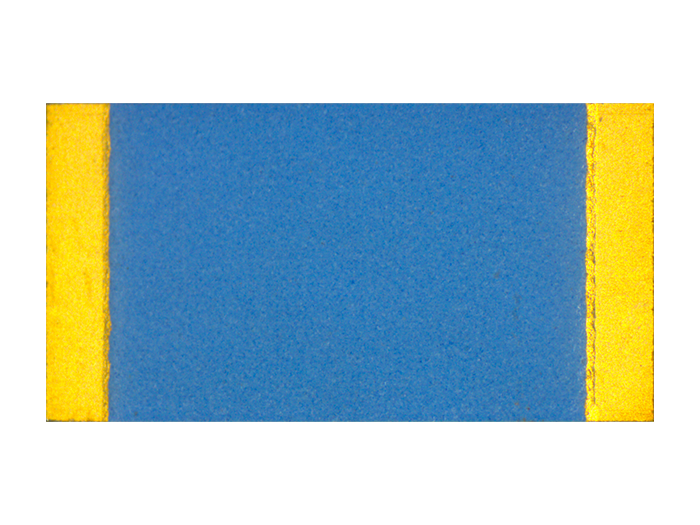

High Precision Wraparound Thin Film Chip Resistors, Sizes 0302 to 2512
  • Low TCR down to 5 ppm/°C (-55 °C to +155 °C), tight tolerance down to 0.01 %
  • Sulfur resistant, failure rate E7 level, from 10R up to 200M
  • Gold terminal for conductive glueing available
P Series
P Series
More Info
RESISTORS

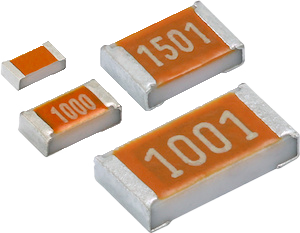

Thin Film Resistors, 1.0 Ω to 3.01 MΩ, 0201 to 1210 Case Sizes, 25 V to 200 V
  • Superior moisture resistivity (85 °C; 85 % RH)
  • Excellent overall stability at different environmental conditions |ΔR/R| ≤ 0.05 % after 1000 h at 70 °C
  • Wide range of sizes and ohmic values
TNPW e3
TNPW e3
More Info
RESISTORS
ESCC ( ) 4001/026 Qualified R Failure Rate, High Precision Thick Film Chip Resistors
  • ESCC ( ) 4001/026 Qualified R Failure Rate
    High Precision Thick Film Chip Resistors
  • Robust terminations
CHPFR
CHPFR
More Info
