Actuators Switches
IOT SENSORS AND BUILDING CONTROL
Actuators Switches
Engineer's Toolbox
Share Icon
PDF Icon
CAPACITORS
Hybrid Energy Storage Capacitors
  • Small size and high energy density
    for BT and GPS support
  • Scalable, flexible voltages, easy to charge
  • Power back up and battery
    pulse power support
  • Instant rechargable, suitable for
    solar power charging
196 HVC ENYCAP™
196 HVC ENYCAP<sup>™</sup>
More Info
ESD PROTECTION DIODES
Single-Line ESD-Protection Diode in SOD-523
  • Compact SOD-523 package
  • 1-line unidirectional ESD-protection
VESD16C1-02V
VESD16C1-02V
More Info
CERAMIC CAPACITORS

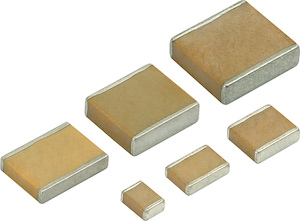

Surface Mount Multilayer Ceramic Capacitors for Pulse Current Applications
  • Low electrostrictive ceramic formulation for repeated charge and discharge cycles
  • High pulse discharge currents
  • Excellent reliability and high voltage performance
VJ1812Y102KXEAT
VJ1812Y102KXEAT
More Info
THIN FILM RESISTORS

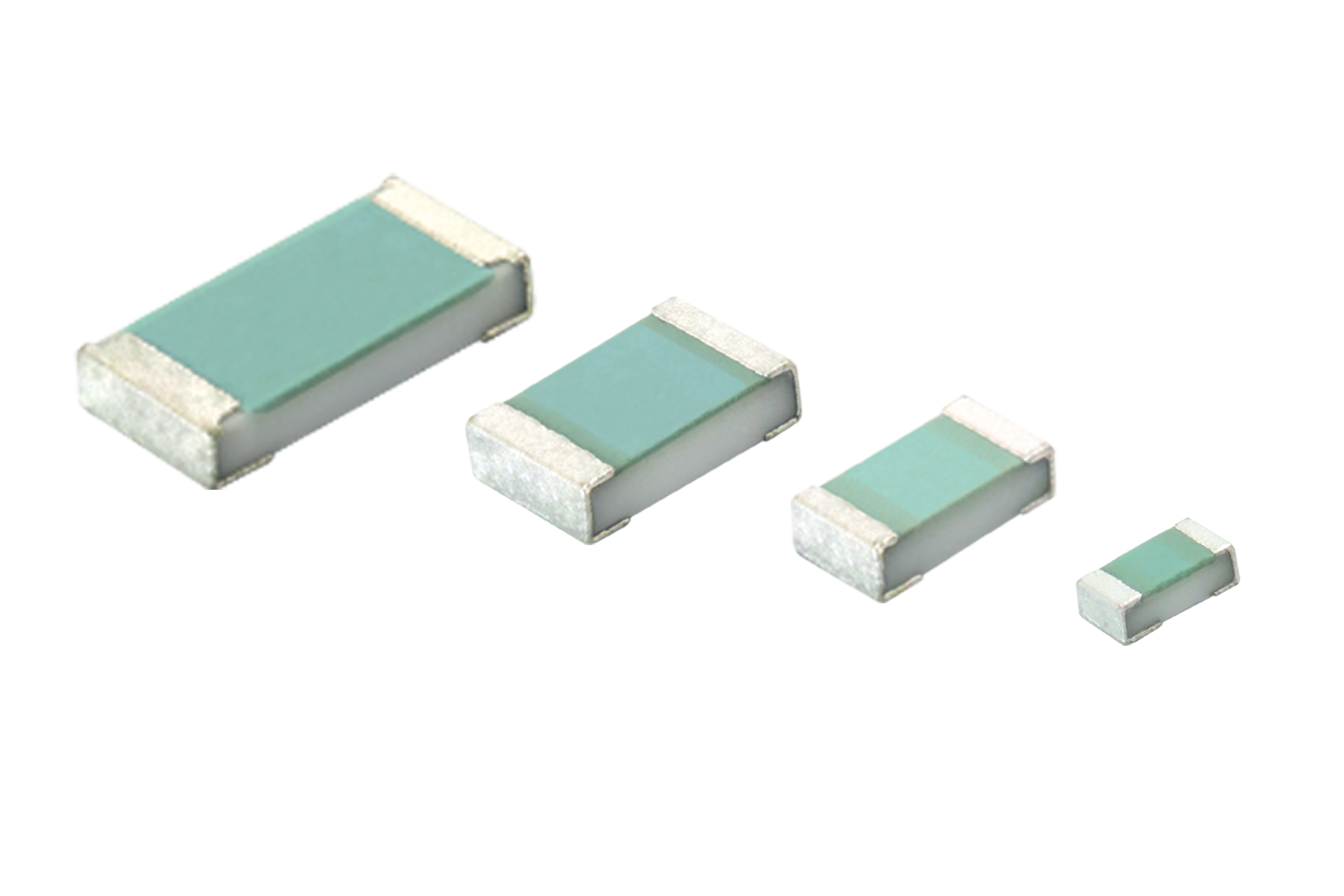

Professional Thin Film Chip Resistors
  • Excellent overall stability, sulfur resistant
  • CECC approved acc. EN 140401-801
  • Professional tolerance of resistance:
    ± 0.5 % and ± 1 %
MCx Professional
MCx Professional
More Info
RESISTORS

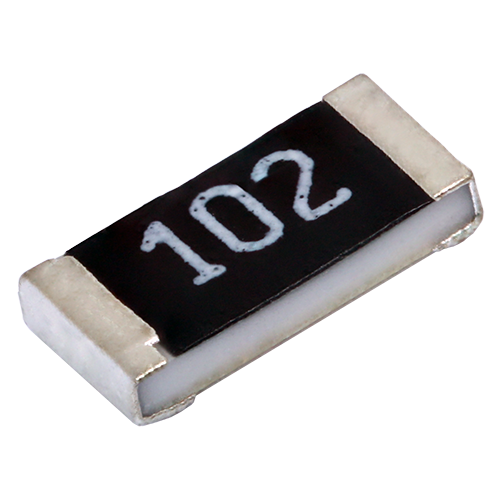

Pulse Proof, High Power Thick Film Chip Resistors
  • Excellent pulse load capability
  • Enhanced power rating, double-side printed resistor element
  • High power thick film chip resistors is the perfect choice for power measurement
CRCW-HP e3
CRCW-HP e3
More Info
FILM CAPACITORS
Interference Suppression Film Capacitors MKP Radial Potted Type
  • 7.5 mm to 27.5 mm lead pitch
  • For standard across the line X2 applications
MKP339 X2
MKP339 X2
More Info
THIN FILM RESISTORS
Axial Cemented Fusible Leaded Wirewound Safety Resistors
  • Silent and safe fusing
  • Surge voltage handling capability (up to 6 kV)
    (1.2 / 50 μs pulse in IEC 61000-4-5)
  • UL1412 recognized; UL file no. E362452
AC03-CS
AC03-CS
More Info
RESISTORS
Power Metal Strip® Resistors, High Power Density, Surface-Mount
  • Very high power rating of 6 W in small 2512 package
  • Extremely low resistance values from 0.0003 Ω to 0.003 Ω, tolerance of 1 %
  • TCR of maximum 200 ppm/K
WSLF2512
WSLF2512
More Info
OPTOELECTRONICS

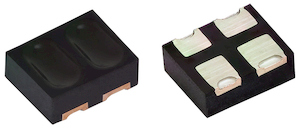

Reflective Sensor with Transistor Output up to 10 mm
  • Low profile of 0.8 mm SMD and reflow possible
  • 940 nm emitter and phototransistor ouput
  • Short distance proximity and reflective encoder applications
VCNT2020
VCNT2020
More Info
MOSFETs

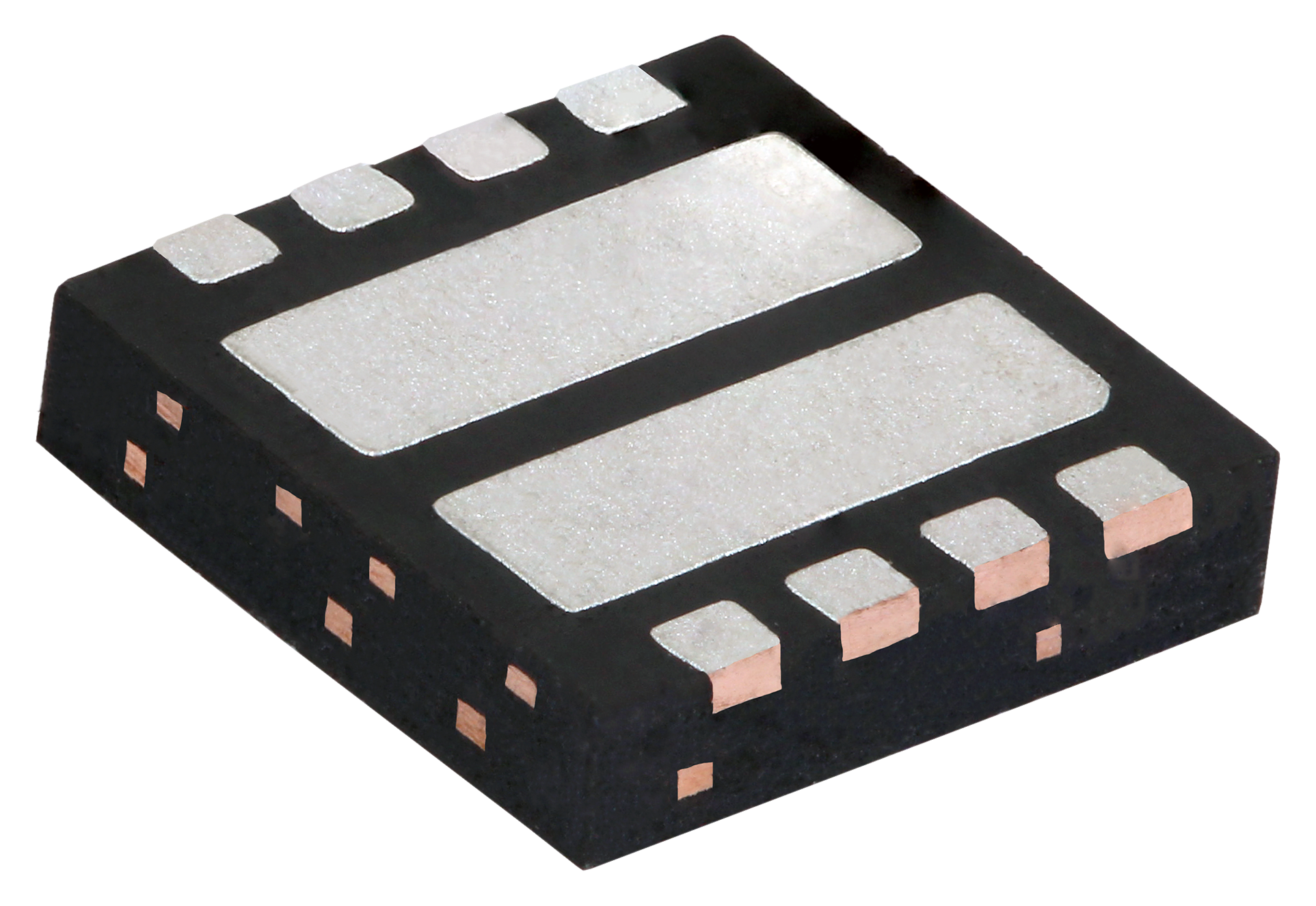

Dual N-Channel 100 V (D-S) MOSFETs
  • TrenchFET® Gen IV power MOSFETs
  • 100 % Rg and UIS tested
SiZ270DT
SiZ270DT
More Info
DIODES AND RECTIFIERS

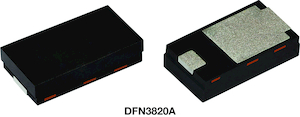

Surface-Mount Transzorb® Transient Voltage Suppressors
  • 600W peak power rating in compact DFN package. Bi-Directional Protection
  • Low Profile of only 0.88mm up to 175°C Junction Temperature
  • Automated optical inspection possible
6DFN12CA
6DFN12CA
More Info
MOSFETs

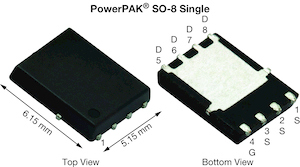

P-Channel 60 V (D-S) MOSFET
  • Trenchfet® Gen V power P-Channel MOSFET
  • Best in class Rds(on)
  • High Power Dissipation
SiR5607DP
SiR5607DP
More Info
