High Power DC-Charger
CHARGING INFRASTRUCTURE
High Power DC-Charger
Engineer's Toolbox
Share Icon
PDF Icon
MAGNETICS
Integrated LLC Transformer / Inductor
  • 5.5 kW transformer / inductor design for unidirectional LLC applications
  • Operating frequencies from 100 kHz to 350 kHz for 400 V to 800 V input
  • 2500VAC isolation. Customization on request
MRTI5R5EZ
MRTI5R5EZ
More Info
MODULES

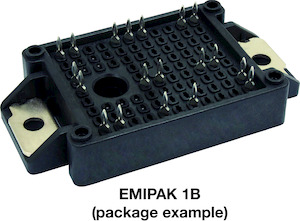

EMIPAK 1B PressFit Power Module 1200 V Line Input Rectification, 20 A
  • Optimized layout to minimize stray parameters, allowing  better EMI performance
  • Qualified using AQG324 guideline as reference, VFM typical at 20 A 1.29 V
  • Customization on request
VS-ENV020M120M
VS-ENV020M120M
More Info
MODULES
EMIPAK 1B PressFit Power Module
  • Fast body diodes for improved swichting performance in resonant topologies
  • Full bridge configuration for DC/DC converters
  • Customization on request
VS-ENY050C60
VS-ENY050C60
More Info
POWER RECTIFIERS

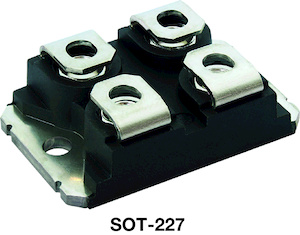

SOT-227 Power Module Insulated Standard Recovery Rectifier, 220 A
  • Standard Recovery Diode for Output Or-ing in scalable topologies
  • 2500 V Insulation Voltage
  • Two separeted Diodes
VS-RA220FA120
VS-RA220FA120
More Info
FILM CAPACITORS
THB DC-Link Metallized Polypropylene Film Capacitors, Radial Type, 85 °C / 85 % RH 1000 h at UNDC
  • High robustness under high humidity: THB 85 °C / 85 % RH / 1000 h at rated voltage
  • High stability on electrical parameters despite ambient conditions
  • Low inductance for pulsed operation
MKP1848H DC-Link
MKP1848H DC-Link
More Info
MOSFETs
MaxSiCTM 1200 V N-Channel SiC MOSFET
  • Short circuit withstand time 3 μs. Highly robust and efficient
  • Bare Die Chip available on request
  • TO247-4L for opimum gate drive circuitry
MXP120A045FL
MXP120A045FL
More Info
DIODES AND RECTIFIERS
1200 V Power SiC Gen 3 Merged PIN Schottky Diode, 30 A
  • Only 1.35V typical Vf achieved by thin wafer technology
  • Virtually no recovery tail and no switching losses
  • MPS structure for high ruggedness to forward current surge events
VS-3C30EP12L-M3
VS-3C30EP12L-M3
More Info
POWER METAL STRIP
Power Metal Strip® Shunt Resistor, Low TCR < ± 10 ppm/°C, Very Low Value >15 μΩ
  • Two resistor elements in series allowing redundancy
  • UP to 36W power dissipation
WSBR
WSBR
More Info
INDUCTORS
High Current Through-Hole Inductors, Edge-Wound Series
  • High-current inductor constructed with flat ribbon wire for minimal losses
  • The powdered iron core material provides stable saturation to 180 °C
  • High isolation voltage, customization possible
IHDM-1008BC-30
IHDM-1008BC-30
More Info
POWER - HEAVY CURRENT (ESTA)
DC Power Electronic Capacitors (PEC) - Rectangular in Plastic Casing
  • High reliability and lifetime expectation
  • Low inductance  and high impulse current rating
  • from 450V - 3800V, customization available
LNK Rectangular
LNK Rectangular
More Info

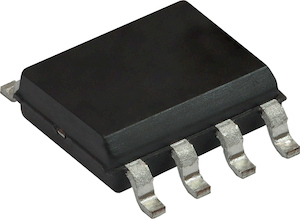

High Thermal Stability Isolation Amplifier
  • Differential output isolated amplifier for shunt based current sensing
  • Isolation test voltage: 5000 VRMS, ± 250 mV linear input voltage range
  • Fixed gain: 8.2 and Wide bandwith: 250 kHz
VIA0250DD
VIA0250DD
More Info
NTC Thermistors, High Temperature Lug Sensors, 150 °C
  • 150 °C long term stability
  • High insulation voltage up to 2700 VAC
  • UL recognized, AEC-Q200 compliant
NTCALUG01T
NTCALUG01T
More Info
