Heat Pump
HVAC
Heat Pump
Engineer's Toolbox
Share Icon
PDF Icon

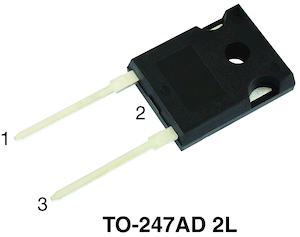

DIODES AND RECTIFIERS
1200 V Power SiC Gen 3 Merged PIN Schottky Diode, 30 A
  • Only 1.35V typical Vf achieved by thin wafer technology
  • Virtually no recovery tail and no switching losses
  • MPS structure for high ruggedness to forward current surge events
VS-3C30EP12L-M3
VS-3C30EP12L-M3
More Info

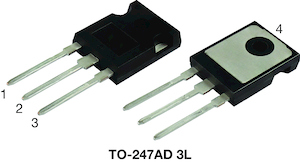

POWER RECTIFIERS
Phase-Leg configuration in TO-247 package
  • high power input rectifier up to 45A
  • high surge current capabilty and up to 175°C
SEP4512
SEP4512
More Info

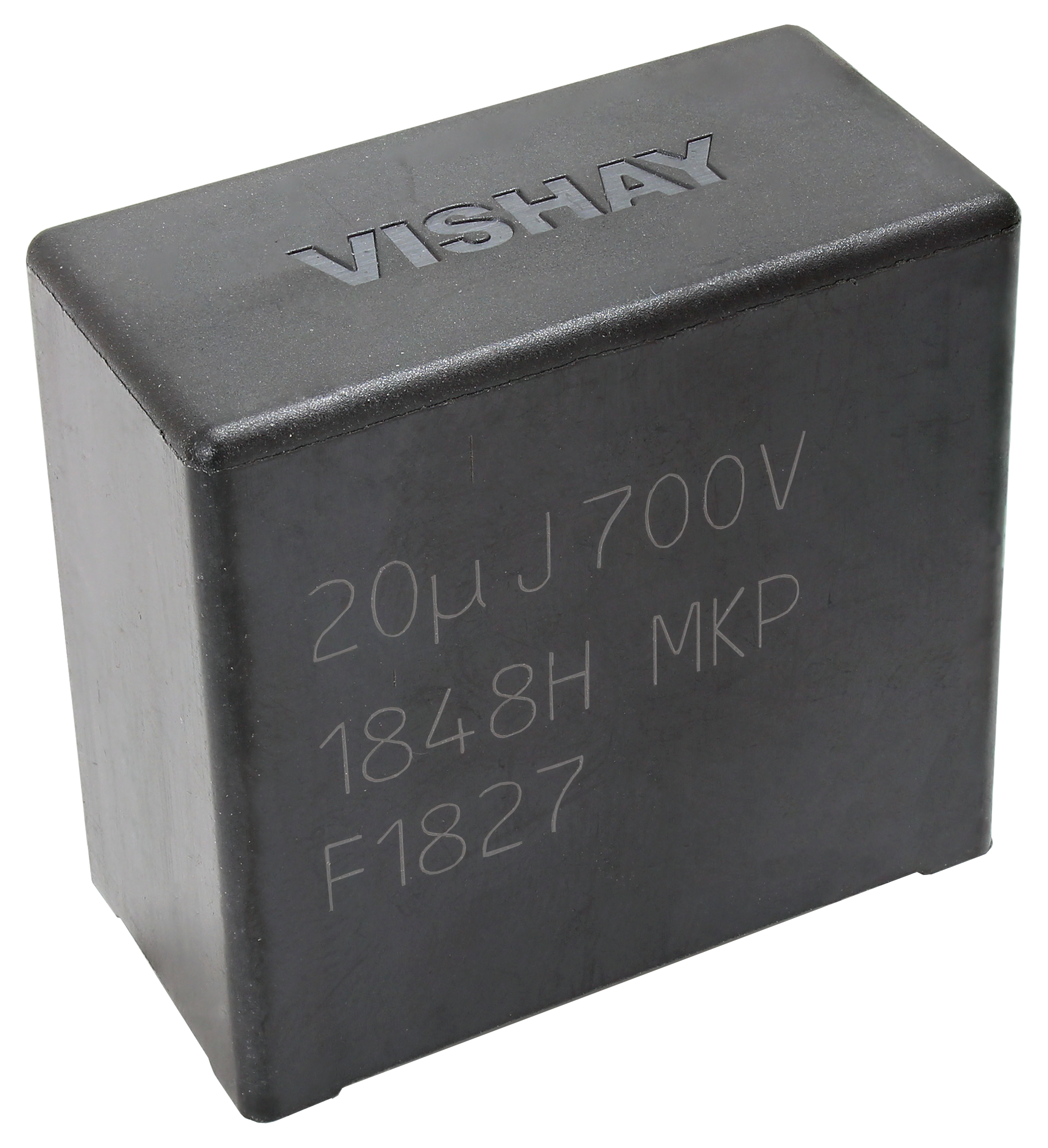

FILM CAPACITORS
THB DC-Link Metallized Polypropylene Film Capacitors, Radial Type, 85 °C / 85 % RH 1000 h at UNDC
  • High robustness under high humidity: THB 85 °C / 85 % RH / 1000 h at rated voltage
  • High stability on electrical parameters despite ambient conditions
  • Low inductance for pulsed operation
MKP1848H DC-Link
MKP1848H DC-Link
More Info

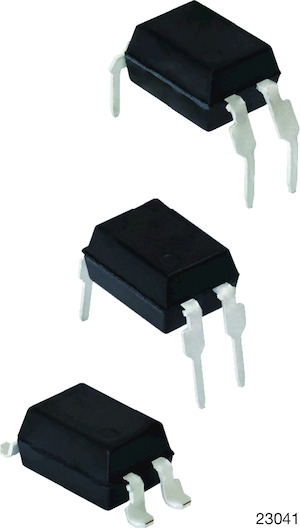

OPTOELECTRONICS
Optocoupler, Phototriac Output, Zero Crossing, High dV/dt, Low Input Current
  • 800 V peak off-state blocking voltag allows direct AC-Line Switching
  • High input sensitivity IFT = 5 mA;  Isolation rated voltage 5300 VRMS
  • 100 mA on-state current
VOT8024AB
VOT8024AB
More Info

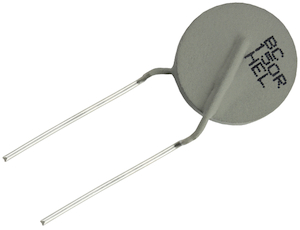

PTC Thermistors, Inrush Current Limiter High Energy
  • Highly resistant against non-switching peak-powers of up to 25 kW
  • Can handle high direct voltage up to 1200 V
  • Self protecting in case of overload with no risk of over-heating
PTCEL High Energy Series
PTCEL High Energy Series
More Info
RESISTORS
High Pulse Load Carbon Film MELF Resistors
  • tested and certified according to EN IEC 62368-1. Special carbon film technology
  • Surge voltage capability up to 10 kV 1.2/50 μs pulse
  • up to 500V continous working voltage. 2.2Ω - 1.5MΩ
CMB 0207
CMB 0207
More Info
MOSFETs
MaxSiCTM 1200 V N-Channel SiC MOSFET
  • Short circuit withstand time 3 μs. Highly robust and efficient
  • Bare Die Chip available on request
  • TO247-4L for opimum gate drive circuitry
MXP120A045FL
MXP120A045FL
More Info

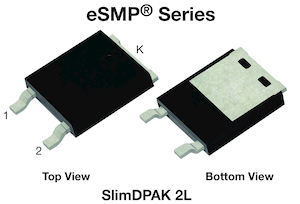

POWER RECTIFIERS
650 V Power SiC Gen 3 Merged PIN Schottky Diode, 10 A
  • MPS structure for high ruggedness to forward current surge events
  • Creepage and clearance distance 2.8 mm minimum
  • Improved VF and efficiency by thin wafer technology
VS-3C10EV07T-M3
VS-3C10EV07T-M3
More Info
POWER METAL STRIP
Power Metal Strip® Resistors, Low Value (Down to 0.0003 Ω), Surface-Mount
  • Welded constructions allows high stabily over temperature and lifetime
  • Pulse Load calculator online available
  • Non trimmed construction of high power dissipation and low resistance
WSLF
WSLF
More Info

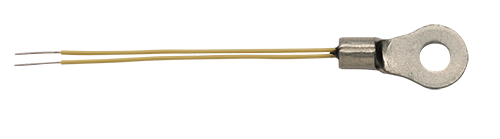

NTC Thermistors, Low Thermal Gradient Lug Sensors
  • 1500 VAC insulation voltage
  • Custom modifications available on request
  • Low thermal gradient due to nickel conductor and low profile closed ring tongue
NTCALUG02A
NTCALUG02A
More Info

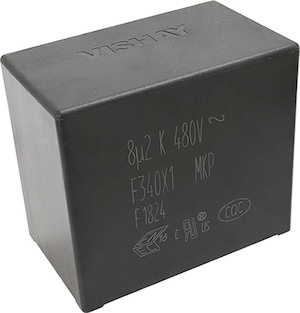

FILM CAPACITORS
THB Grade IIIB Class X1 Interference Suppression Film Capacitor
  • IEC 60384-14: 2013 / AMD1: 2016 grade IIIB:  85 °C, 85 % RH, 1000 h at URAC certified
  • Series Construction for high robustness and stabilty
  • Tolerance  ± 20 %; ± 10
F340X1 480VAC
F340X1 480VAC
More Info
INDUCTORS
SMD common Mode Choke
  • Full SMD process possible
  • Low profile of 11 mm. 1500 VDC isolation
  • Wide range of inductance and current ratings
IHCM
IHCM
More Info
