Auxiliary Power Converter
POWER SUPPLY
Auxiliary Power Converter
Engineer's Toolbox
Share Icon
PDF Icon
MOSFETs

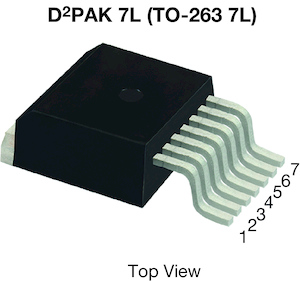

MaxSiC™ 1200 V N-Channel SiC MOSFET
  • Fast switching speed
  • Short circuit withstand time 3 µs
  • 250mΩ in D2PAK-7L
  • High efficiency by use of SiC
MXP120A250FE
MXP120A250FE
More Info
CAPACITORS
EMI Suppression Safety Capacitor, Ceramic Disc, Class X1, 760 VAC, Class Y1, 500 VAC
  • First SMD capacitor with Full IEC 60384-14 4th compliance
  • 1500 V DC Rating
  • All SMD process possible
SMDY1
SMDY1
More Info
DIODES AND RECTIFIERS

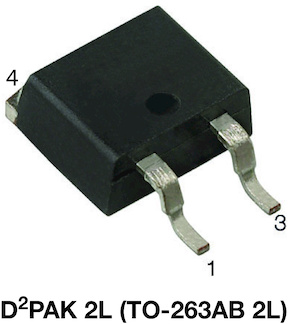

1200 V Gen 3 Power SiC Merged PIN Schottky Diode, 5 A
  • SiC-Schottky Diodes ideal as Bootstrap Diode in high power converters
  • >5.2mm creepage distance
  • Thin wafer technlogy for reduced forward voltage
VS-3C05ET12S2L-M3
VS-3C05ET12S2L-M3
More Info
RESISTORS
High Voltage, Thin Film Flat Chip Resistors, Up to 1 kV Operating Voltage
  • High operating voltage Umax. up to 1000 V
  • Low voltage coefficient < 1 ppm/V
  • Long term stable and excellent moisture stability
TNPV e3
TNPV e3
More Info
DIODES AND RECTIFIERS
Hyperfast Rectifier, 2 A FRED Pt®
  • Extremely optimized stored charge and low recovery current
  • Trr of 45 ns. Compact SMF-package
  • Platinum doped guarantee the best overall performance, ruggedness + reliability
VS-E7FX0212-M3
VS-E7FX0212-M3
More Info
DIODES AND RECTIFIERS
Surface-Mount TMBS® (Trench MOS Barrier Schottky) Rectifier
  • 7A in compact DFN3820 instead of SMB-Package
  • 3rd Generation Schottky with low leakage and low forward voltage
  • Side wall plating for optical insepction of solder joint
V7N103
V7N103
More Info
MOSFETs
EF Series Power MOSFET With Fast Body Diode
  • 3rd Generation Fast recovery MOSFETs. Trr of typical 127ns
  • Avalanche energy rated (UIS)
  • Low effective capacitance Low figure-of-merit (FOM) Ron x Qg
SiHP24N80AEF
SiHP24N80AEF
More Info
CERAMIC CAPACITORS

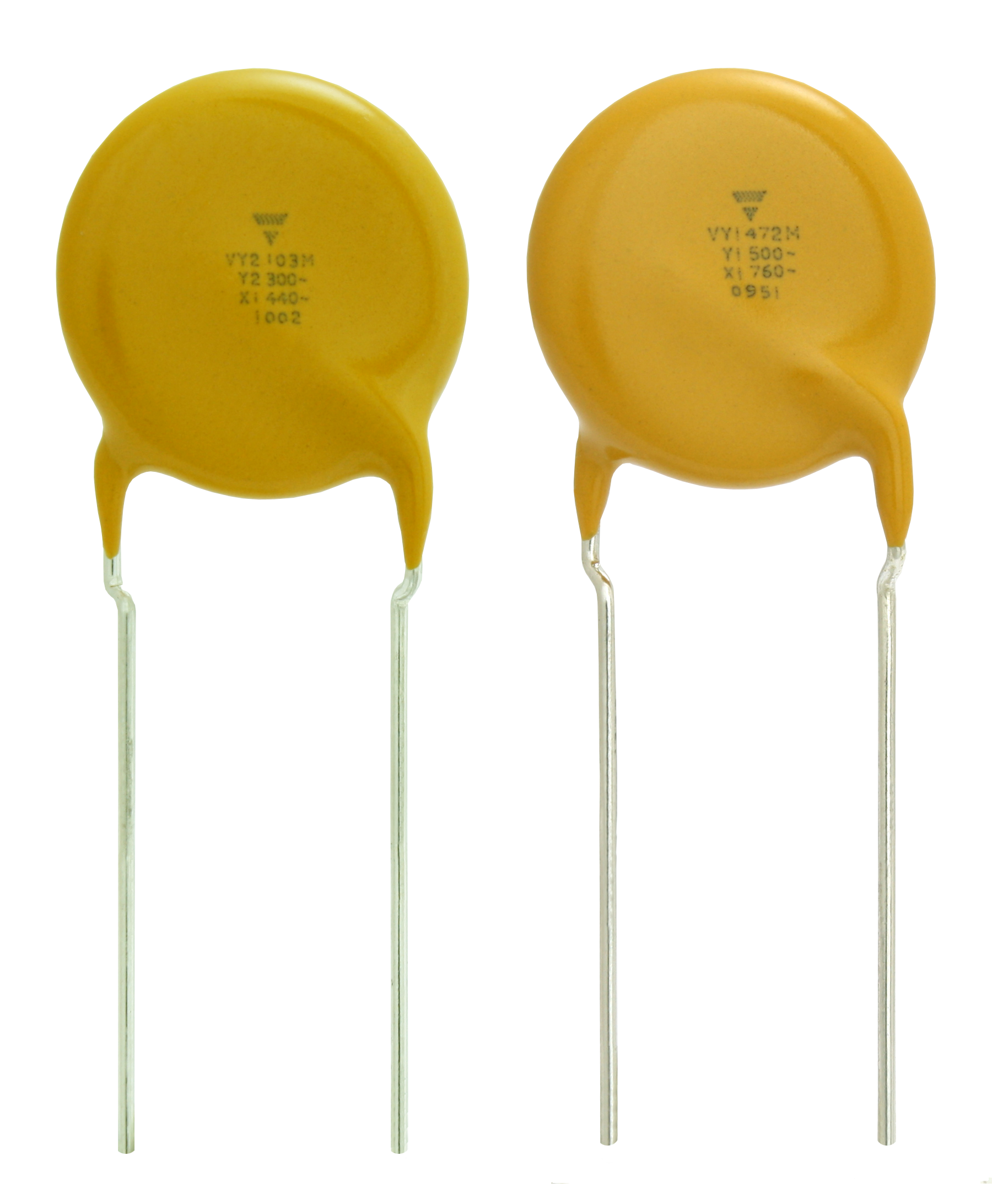

AC Line Rated Ceramic Disc Capacitors
  • X1 / Y1 safety rating according to IEC 60384-14, 4th edition
  • Highest reliability and lifetime, operating temperature -40 °C to +125 °C
VY1 Series
VY1 Series
More Info
FILM CAPACITORS
THB AC and Pulse Metallized Polypropylene Film Capacitors
  • High temperature operation up to 125 °C
  • THB 60 °C 93 % RH for 56 days at rated voltage
  • Ideal as LLC-Resonance Capacitors
MKP385e
MKP385e
More Info
POWER METAL PLATE
Power Metal PlateTM Current Sense Resistors, Wide Resistance Range and High Power
  • Very low inductance 0.5 nH to 5 nH, 2010 and 2512 size packages
  • Ideal for all types of current sensing and pulse applications
  • Wide ohmic range and high power density
WFM
WFM
More Info
OPTOELECTRONICS
Optocoupler with Phototransistor Output and Low Forward Current of IF = 1 mA
  • High current transfer ratio, high isolation
    voltage of 5000 VRMS
  • Operating temperature range -55 °C to +110 °C
    in 4-pin LSOP, mini-flat package
  • 80 V emitter voltage
VOL618A
VOL618A
More Info
